⚡ Basic Information
Battery
48V105ah Lithium Battery
Wheel & Tire
14X7" Aluminum Wheel / 215/35R14 Radial Tire
Chasis
Electrophoresis Chasis
Specification
2860x1400x1930mm
📦 Packaging & Delivery
Package Size
300.00cm * 150.00cm * 200.00cm
Transport Package
Export Packing
📋 Product Description

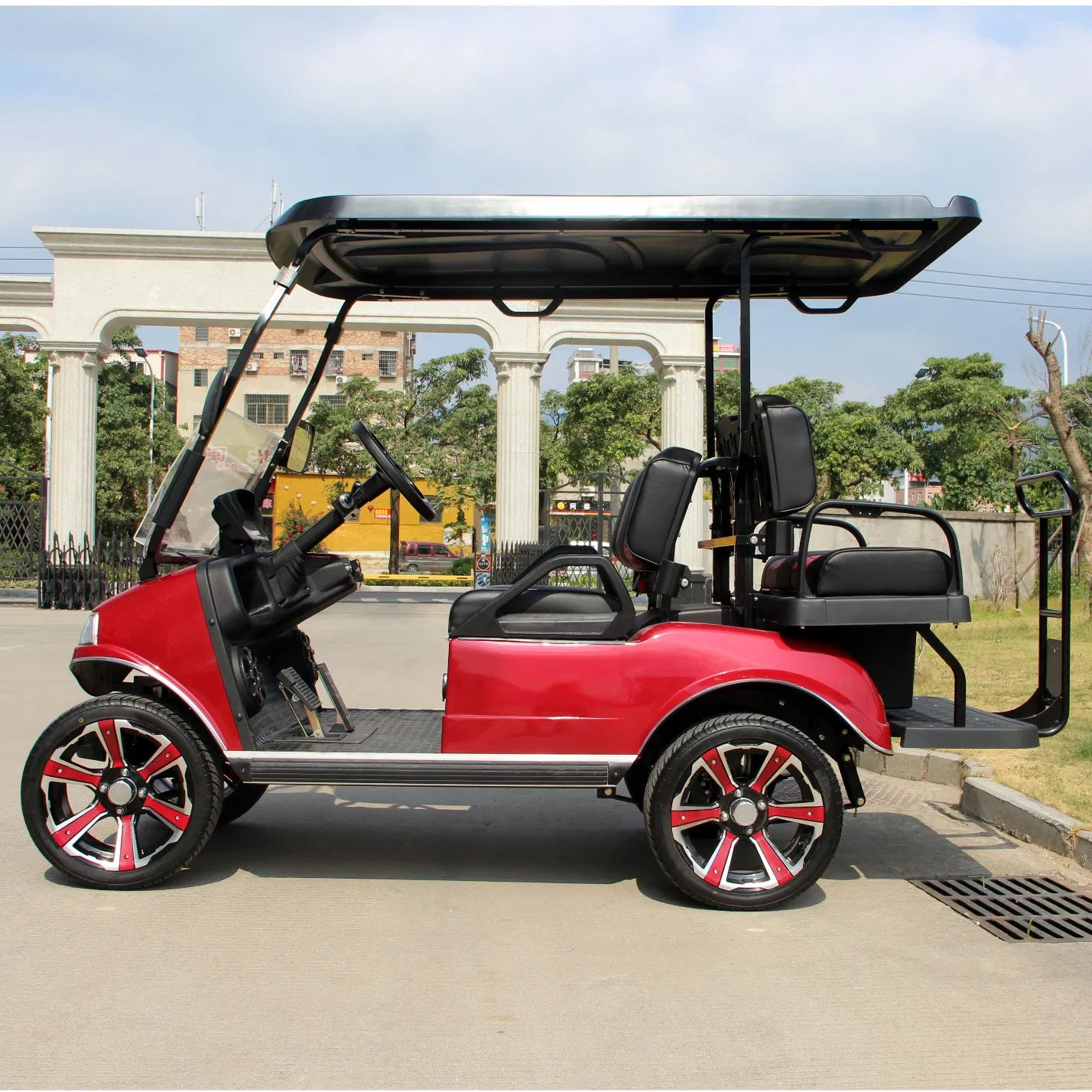

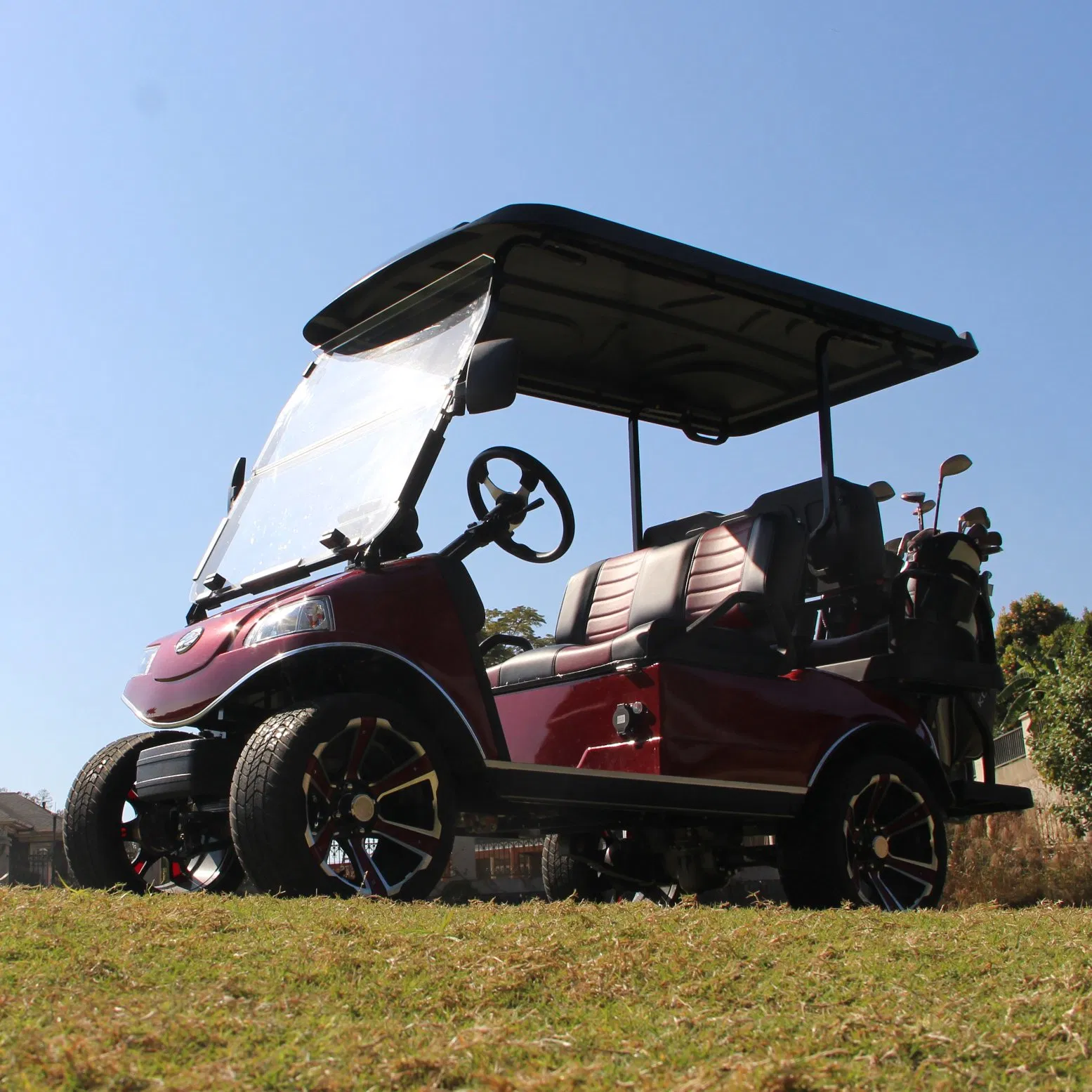

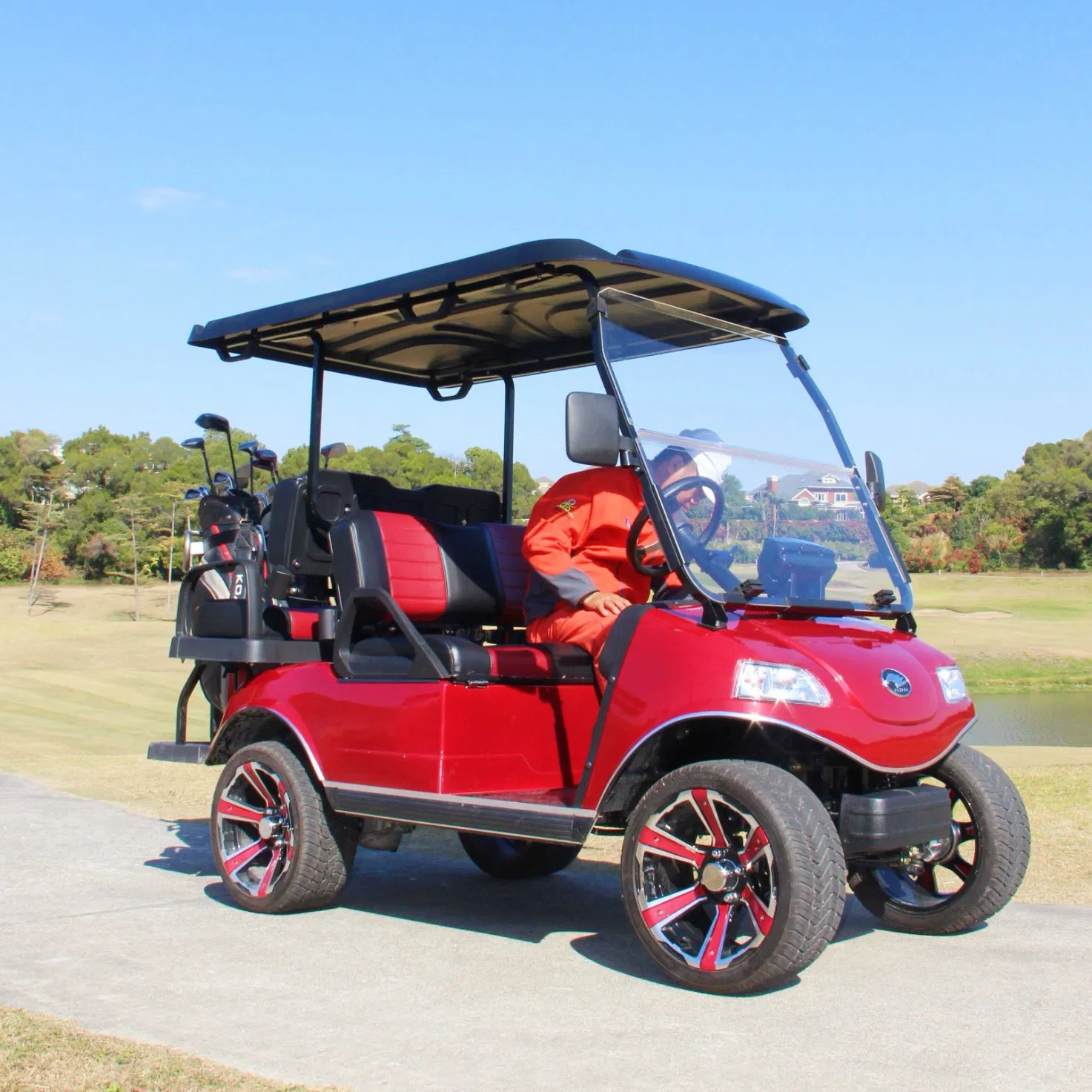

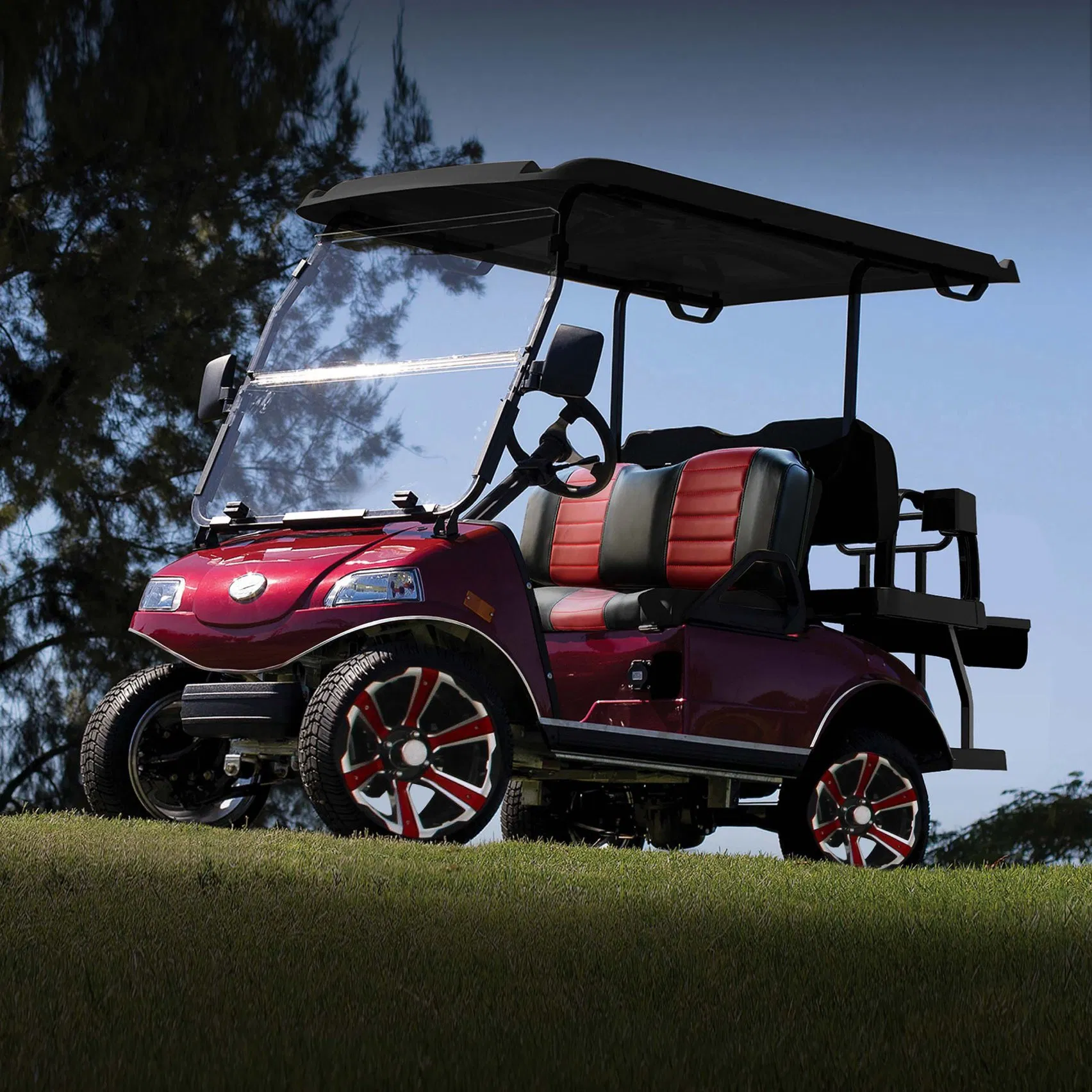

Golf Club Car (DEL3022G2Z, 2+2-Seater)
• Product Model: DEL3022G2Z
• Power Source: Electric (48-volt System)
| Boundary Dimension |
2860×1400×1930 mm |
Wheel Base |
1650 mm |
| Passengers Capacity |
4 Persons |
Wheel Track (F/B) |
880/980 mm |
| Max Speed (Full Load) |
30 km/h |
Max Gradeability |
30% |
| Braking Length |
≤3.5 m |
Min Turning Radius |
3.1 m |
| Rated Power |
6.3 kw |
Charging Time |
4-5 h |
| Driving Range |
≥60 km |
Curb Weight |
431 kg |
| Controller | EV48-400 400AMP |
| Battery | 48V105AH Lithium |
| Motor | 6.3KW AC |
| Body / Roof | Injection Molding |
| Windshield | Folded Windshield |
| Braking System | Rear Wheel Mechanical Drum Brake + Foot Parking Brake |
| Suspension | Independent Front + Rear Leaf Spring + Hydraulic Shock Absorber |
| Steering | Rack and Pinion Steering |
🎨 Available Options
- Optional Colors: White, Yellow, Green, Red, Black, Gold, Navy Blue, Metallic Green, Camouflage
- Speedometer Included
- Seat Belts Available
- Full Enclosure Options

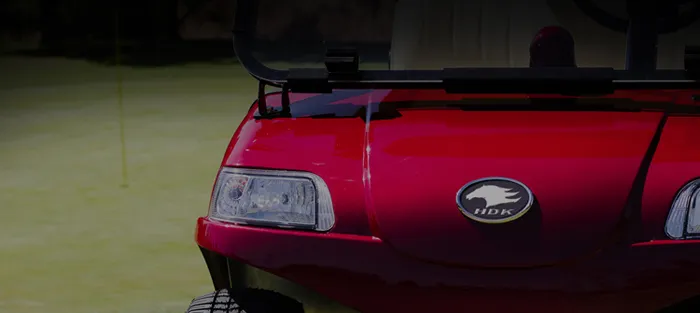

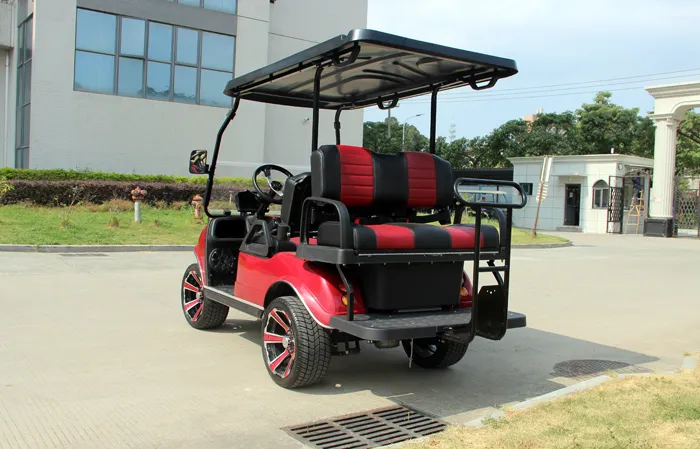

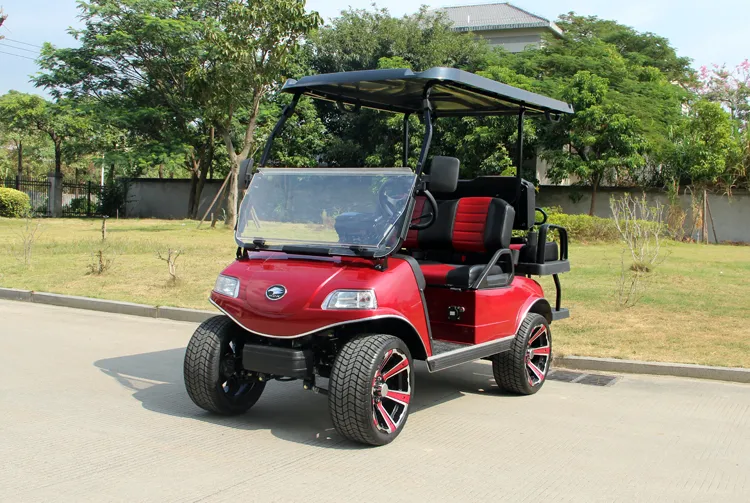

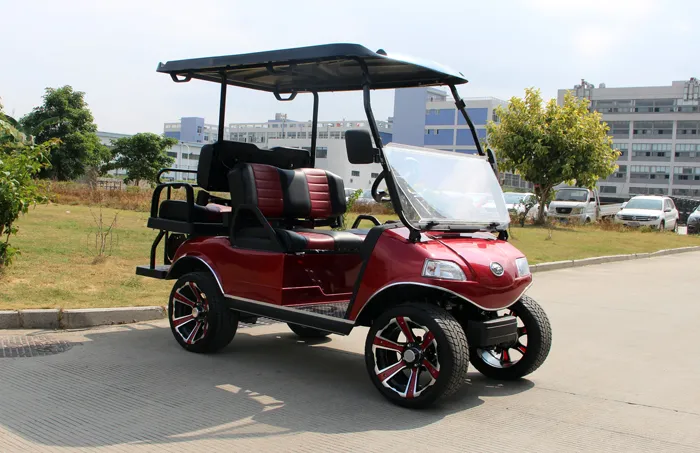

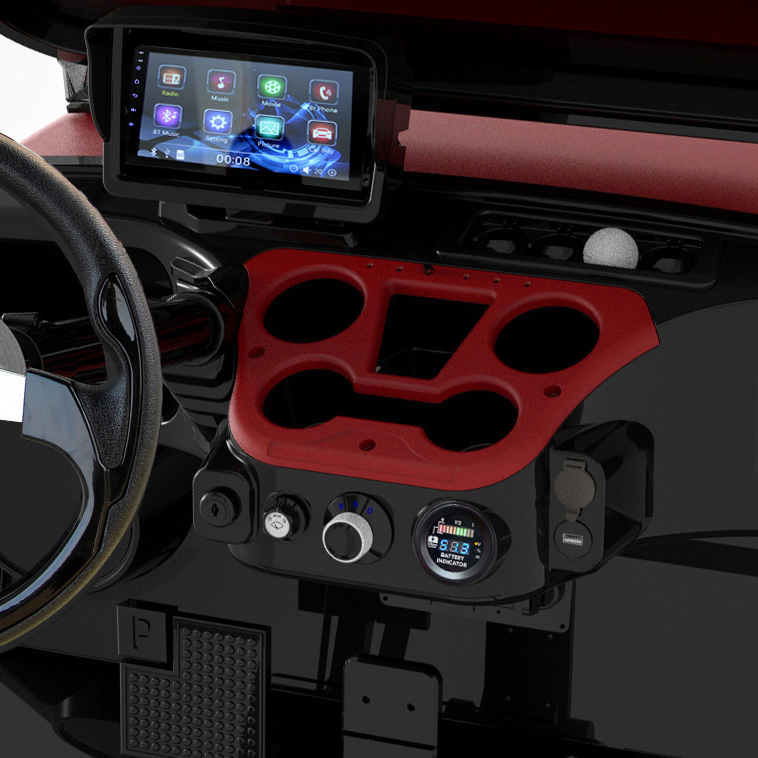

📸 Detailed Photos
❓ Frequently Asked Questions
What type of battery does the DEL3022G2Z use?
It is equipped with a high-performance 48V 105Ah Lithium battery, providing better efficiency and a longer lifespan compared to traditional lead-acid batteries.
How many passengers can this model accommodate?
This is a 2+2 seater model, comfortably accommodating up to 4 passengers.
What is the maximum speed and driving range?
The golf cart has a maximum speed of 30 km/h and a driving range of approximately 60 km or more on a single full charge.
How long does it take to fully charge the battery?
The charging time for the 48V Lithium battery system is approximately 4 to 5 hours.
Can this golf cart handle steep inclines?
Yes, with a 6.3kw motor and advanced controller, it has a gradeability of up to 30%, making it suitable for various terrains.
What color options are available?
Standard and optional colors include White, Yellow, Green, Red, Black, Gold, Navy Blue, Metallic Green, and Camouflage.
