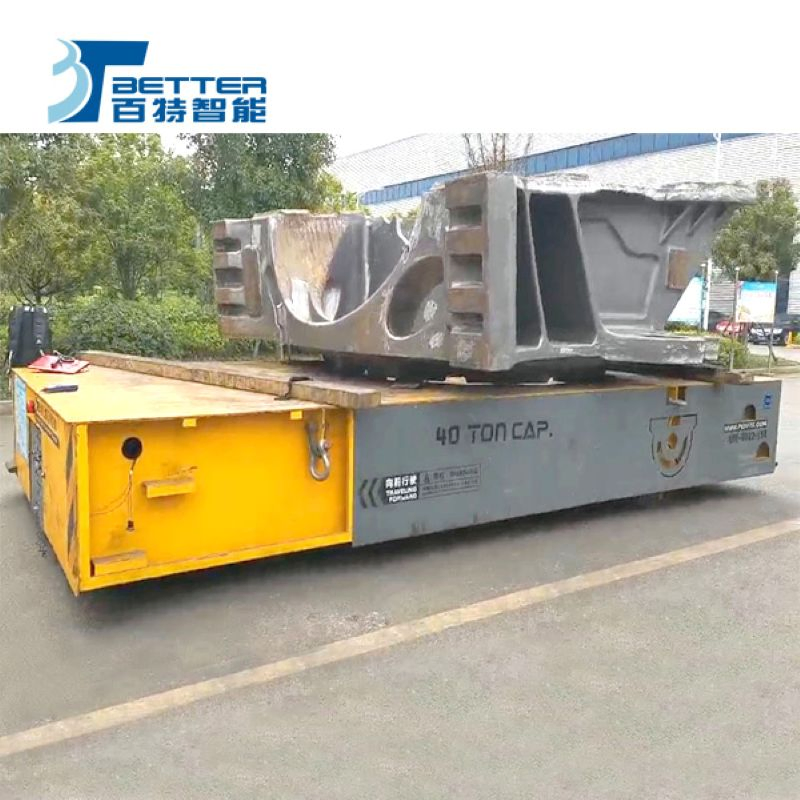

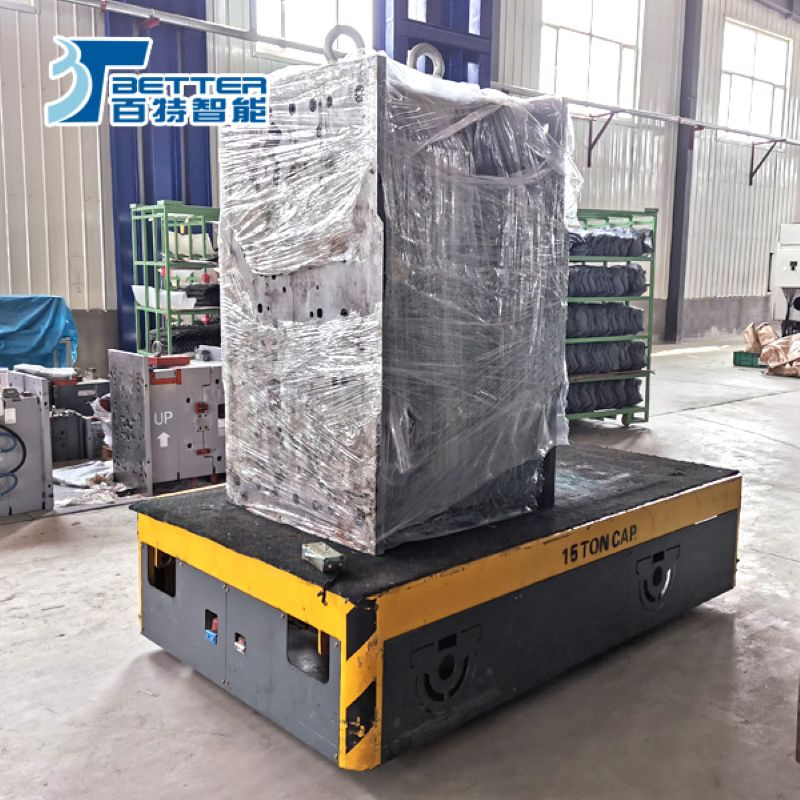

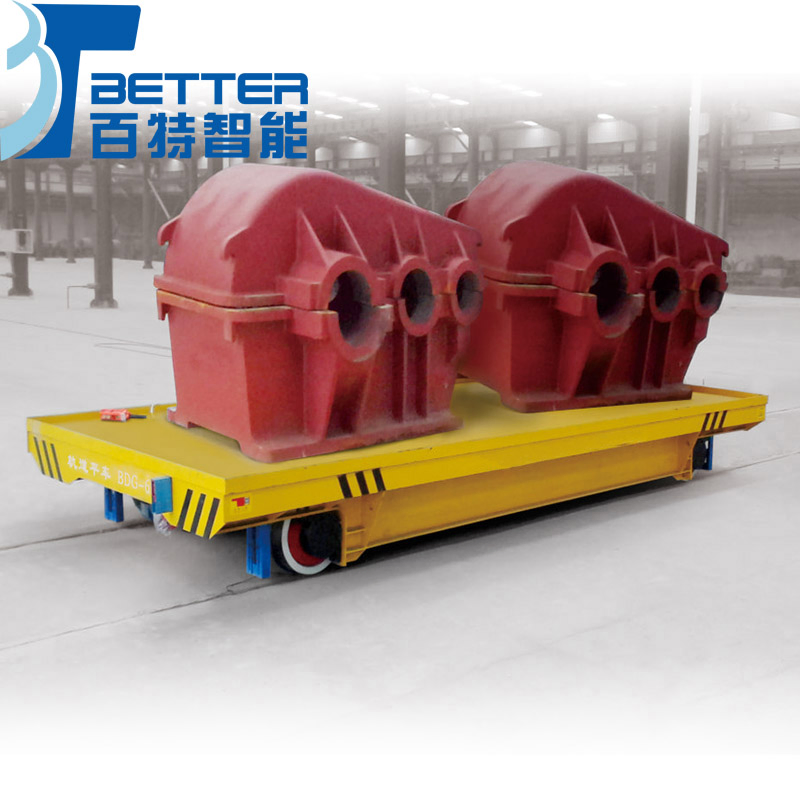

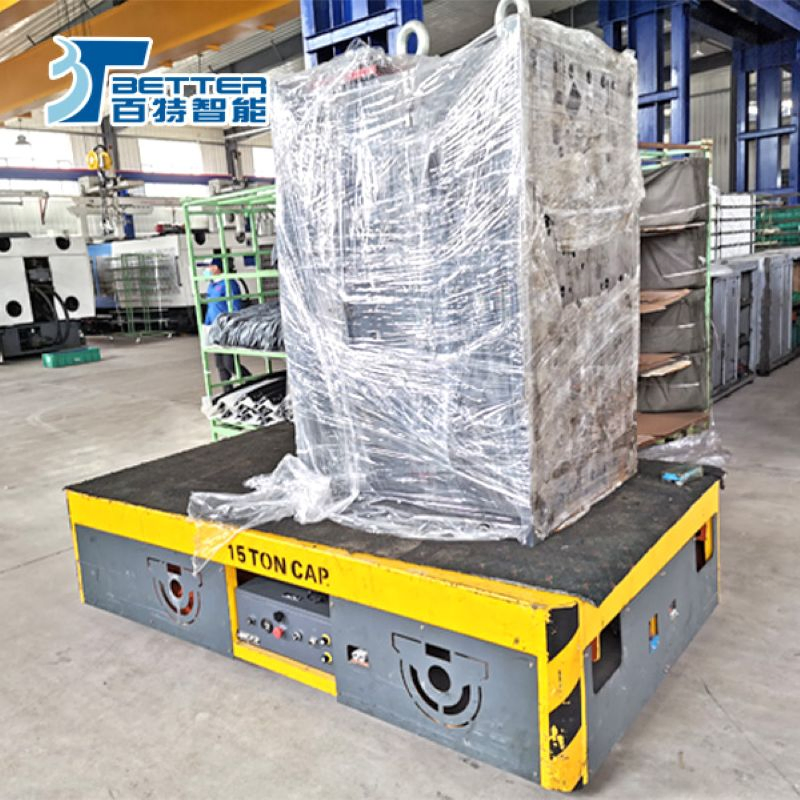

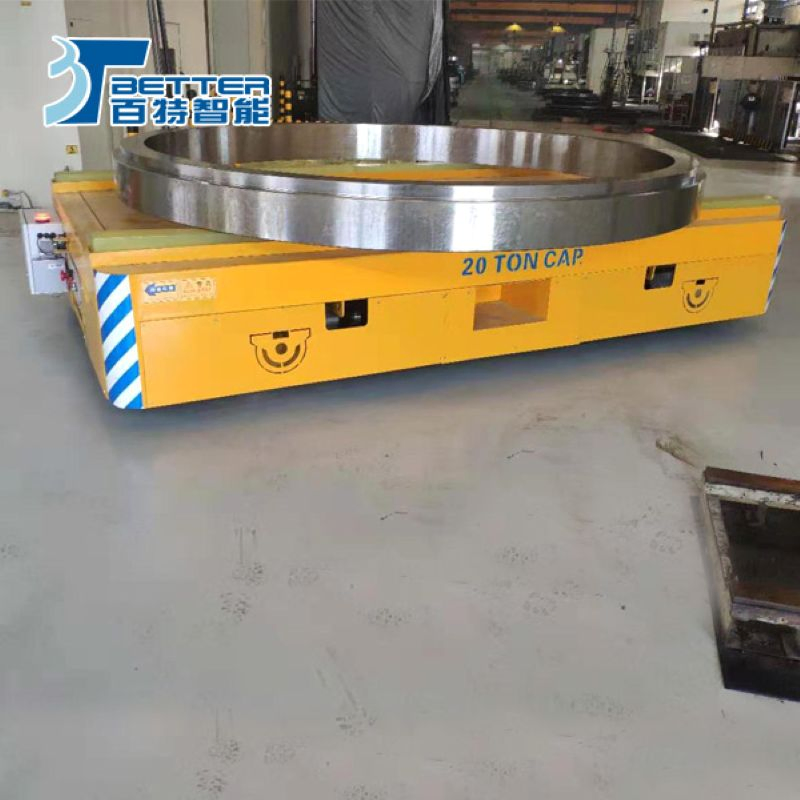

Metal Industrial Motorized Transfer Platform Transport Cart
This electric material handling platform truck is a highly efficient transportation device specially designed for industrial fields such as metal processing and heavy machinery. It adopts a sturdy steel structure platform and high-performance motor drive, capable of safely and smoothly transporting heavy machine tools, large molds, steel raw materials or finished components.
Its platform size can be customized according to requirements, providing a stable load-bearing surface. Through the remote control or control panel, the operator can easily direct the vehicle to move flexibly within the workshop, achieving precise positioning and efficient circulation.
| Model | BXC-2t | BXC-10t | BXC-20t | BXC-30t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 10 | 20 | 30 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4900 | 7000 | |
| Running Speed (m/min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Total Power(kw) | 2 | 2.2 | 2.2 | 3.5 | 5 | 10 | 15 | |
| Battery Capacity(Ah) | 150 | 180 | 220 | 260 | 330 | 440 | 600 | |

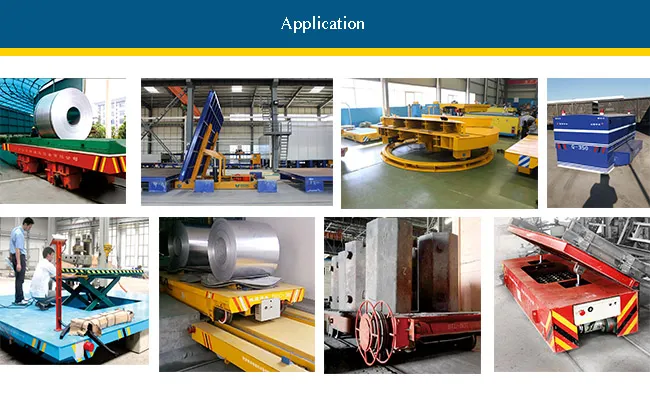

Metal processing workshop: Transfer of raw materials, semi-finished products and molds.
Foundry workshop: Handling of molten steel ladles, castings and sand boxes.
Warehousing and logistics: Handling of heavy materials for entry and exit from the warehouse.
Assembly workshop: Transfer of large components between processes.
Special occasions: Customized explosion-proof, high-temperature resistant and cleanroom versions are available.
For length less than 6m and width less than 2.2m, transportation is handled by 20ft container. For length between 5.9m and 12m, a 40ft container is used. Multiple sets can be transported via full container, while single units are handled by LCL container.

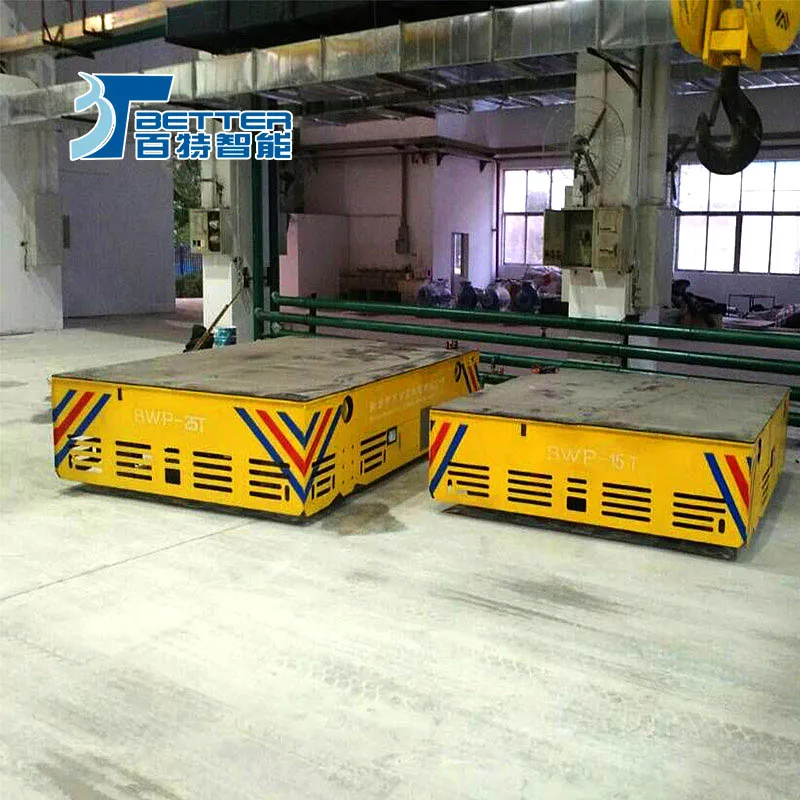

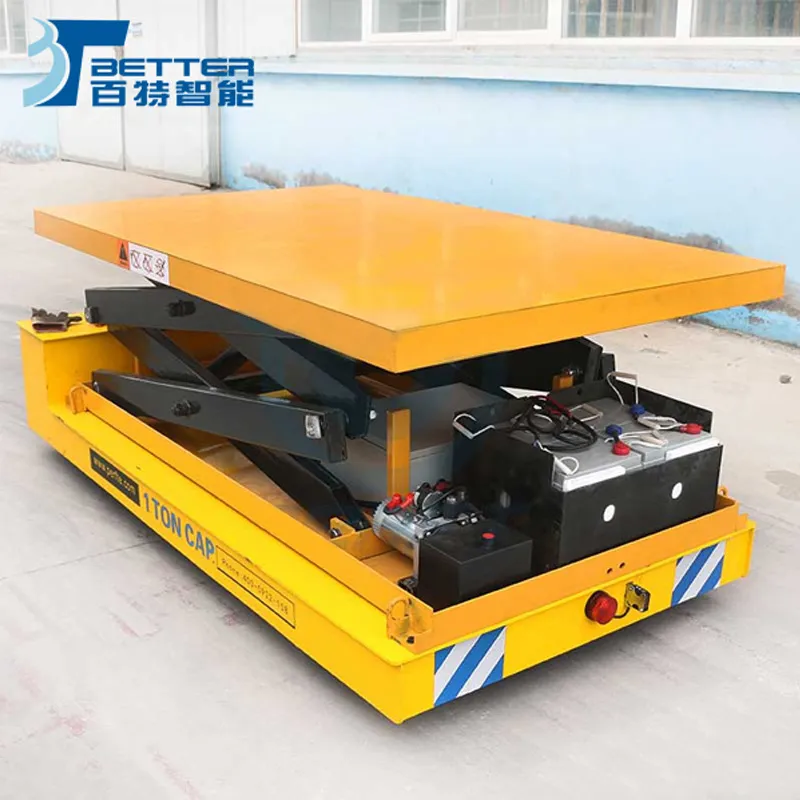

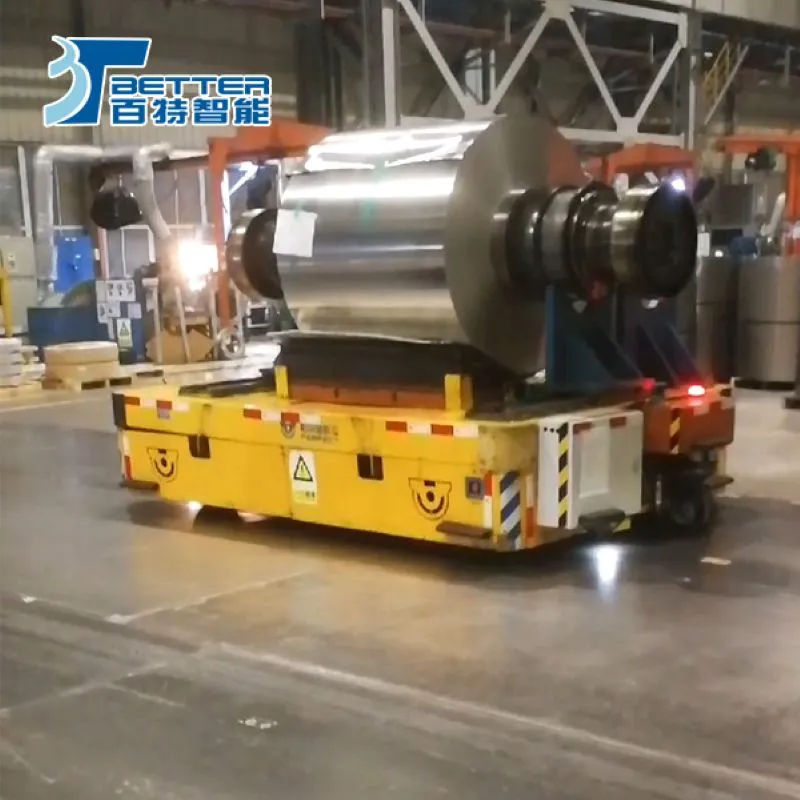

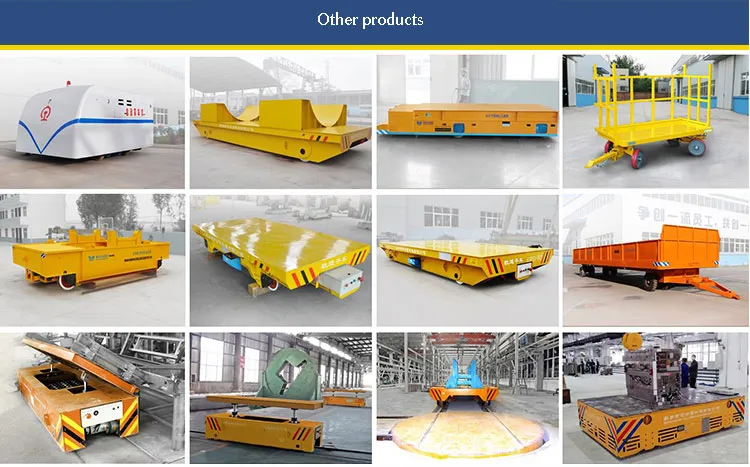

Transfer Cart: Trackless transfer car, Battery operated transport trolley, Coils cart, Ladle transfer cart, Hydraulic scissors lift table cart etc.
